Elektro-Triebzug - Serie ELD4 AC

Producent     Märklin   Varenr.     37423   EANnr.     4001883374239   Varegruppe     Usorteret Märklin   Se stort billede     Tryk her

Skala     1:87 - H0   Strøm     AC   Epoke     Epoke V

• Factory-installed interior lighting.
• Extensive sound and light functions included.
• Equipped with the new mfx+ digital decoder.
• Operation possible in beginner, advanced, and expert modes.
• Simulated operating supplies usage.
• Realistic running characteristics such as constant speed.
• Simulated engineer's cab in the Central Station 2 display.
• Control of the model in the cab mode by means of the touchscreen on the Central Station 2.
• These new functions are only available in conjunction with the Central Station 2 starting with firmware Version 3.5.

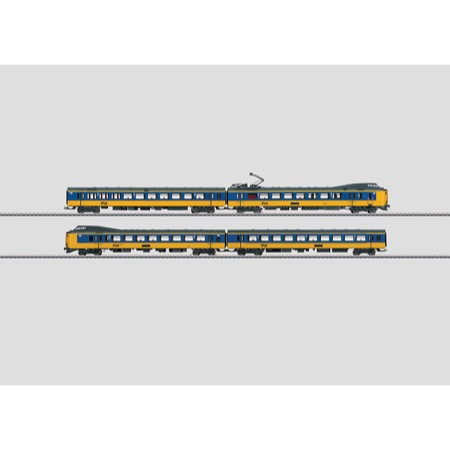

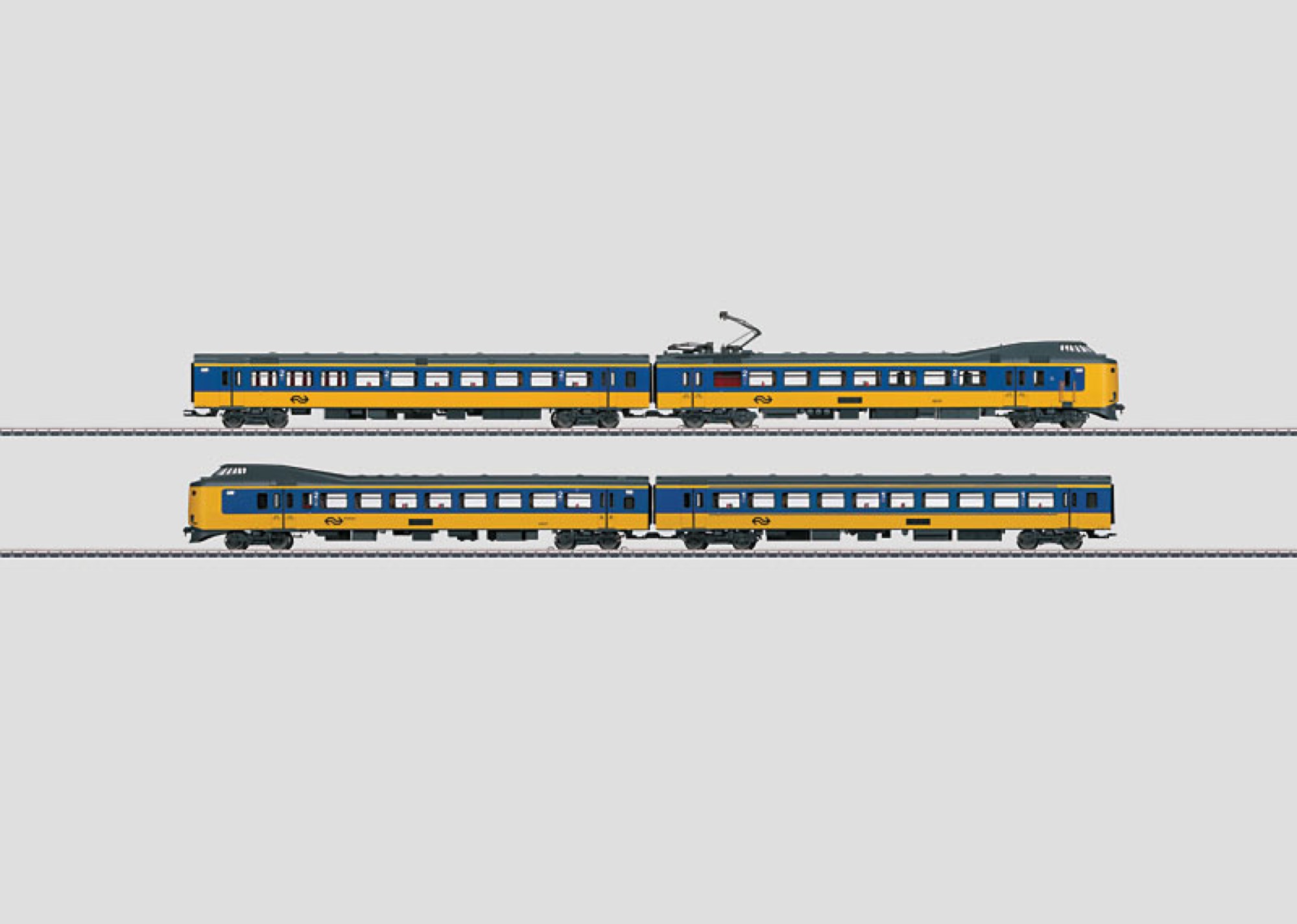

Model:
The train has an mfx+ digital decoder and extensive sound functions. It comes in a four-part version. The powered end car has a die-cast frame. The train has controlled, high-efficiency propulsion with a flywheel. 2 axles in one truck powered. Traction tires. The engineer's cabs in both end cars have interior details. The train has power pickup in the end car at the front of the train; the power pickup changes with the direction of the train. It also has special close couplers with a guide mechanism. The train has factory-installed interior lighting. The interior details vary with the type of car. The triple headlights, dual red marker lights, and the interior lighting will work in conventional operation and can be controlled digitally. The headlights at car ends 2 and 1 can be turned off separately in digital operation. Light yellow and red LEDs are used for the headlights and marker lights. Warm white LEDs are used for the interior lighting. The construction of the running gear and the bodies is detailed. There is a representation of the "Scharfenberg" coupler with a cover on the end cars. A rigid drawbar coupling is included for multiple unit operation. The end cars come from the factory with closed crossover doors. A plug-in part included with the train makes it possible to represent swinging doors with a diaphragm pushed to the side on one end car. Total train length 114.8 cm / 45-3/16".

Prototype information:
The "Koploper". In the mid-Seventies, the Dutch State Railways needed new material to modernize its express passenger service. Trains with flexible utilization are required in this densely populated country in order to manage service in the urban areas. As a result, from 1977 to 1994, a total of 144 powered rail cars, the "Koploper" family, were placed into service. These powered rail cars could be separated and coupled at stops quickly and easily. It also became important that passengers be able to change from one unit to the other, when the train was in motion. The engineer's cabs were thus quickly raised up one level and these powered rail cars were equipped with crossovers at the ends. This feature gives the "Koplopers" a brawny, unusual look. The "Koplopers" were built by the firms Talbot, CEM Oerlikon, and Holec, and were designated by the Dutch State Railways as the classes 4000 and 4200, which differed from one another in their motors, among other things. A short while ago the "Koplopers" underwent modernization and were equipped with air conditioning and facilities for handicapped people. These powered rail cars can reach 160 km/h / 100 mph and are run in the classic NS paint scheme, but they have also been used as advertising surfaces such as for the Olympic Games in 2008 in Beijing. The "Koplopers" are certainly a successful development in rail vehicle technology and their unusual appearance is clearly leaving its mark on passenger service in the Netherlands.

Order this model now at your MHI specialty dealer!
