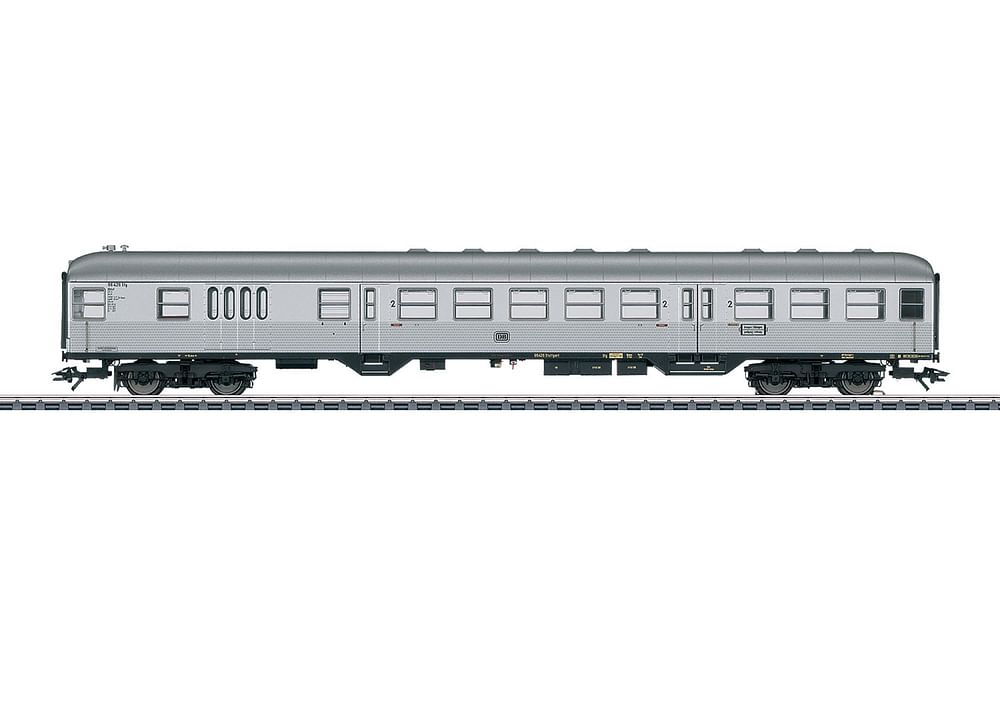

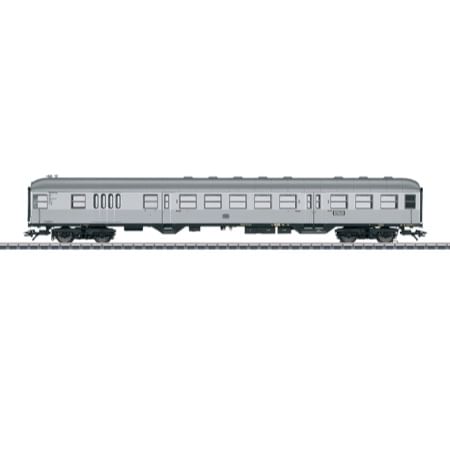

The car has the new, longer length. The minimum radius for operation is 360 mm / 14-3/16". The underbody is specific to the type of car. The trucks come with brake shoes. The triple headlights / dual red marker lights change over with the direction of travel in analog and digital operation. The headlights are maintenance-free, warm white LEDs; the marker lights are maintenance-free LEDs. The car has a trailing switch for changing the headlights / marker lights over. The car is ready for installation of the 7319 current conducting couplings or the 72020/72021 current conducting couplers, the 73406 pickup shoe, and the 73400/73401 lighting kit (2 per car).
Length over the buffers 28.2 cm / 11-1/8".
DC wheel set E700580.Prototype information:
The "Silberlinge / Silver Coins" - A DB Success Story
The German Federal Railroad car designated as "Silberling / Silver Coin" is a car adhering to the UIC-X guidelines. It is 26.4 meters / 86 feet 7-3/8 inches long and has 2 entry areas with double doors. The name derives from the car bodies constructed of polished stainless steel. The car group "n", the official designation for the "Silberling", was purchased in a group of 5,000 units between 1961 and 1980 and in different designs. For a long time it was the most numerous car in commuter service on the DB. Depending on the design, these cars tip the scales at 31-40 metric tons and are authorized for a maximum speed of 120-140 km/h / 75-88 mph.
The pure 2nd class car has seating for 96, in the mixed class car there is seating for 30 in 1st class and for 46 in 2nd class. The German Federal Railroad placed different cab control cars into service for push/pull operation. The "Rabbit Hutch", a cab control car with extremely cramped space for the locomotive engineer was replaced by the later "Karlsruher Kopf" type cab control car. This cab control car also had a baggage area, but more importantly a modern, generously arranged engineer's cab. The name derives from the maintenance facility in Karlsruhe, where the cab control cars were rebuilt.
The "Silberling" was a universal car, from commuter service to express trains, even used as reserve cars in Inter-Zone trains to Berlin. The "n" cars had steam, diesel, and electric locomotives for motive power, and, like many other DB cars, were run in different paint schemes. However, although they have been ignored in mint green, "traffic red", or countless forms of Graffiti, they have remained the "Silberlinge" in popular usage. Presently, these cars are in used on the DB AG in the "traffic red" paint scheme, and similar classes based on the construction principles for the "Silberlinge" can be found in Luxembourg, the Netherlands, and Poland, for example.The typical Era III DB push/pull train consists of a 43810 car, several 43800 cars, and a 43820 cab control car. The "Silberlinge / Silver Coins" cars are available with different car numbers in the Trix H0 assortment under item nos. 23405, 23406, and 23407. The ideal push/pull locomotive is the class E 41 (item no. 39410 for Märklin).
