Stellpult (Inh.5 St.)

Producent     Märklin   Varenr.     70729   EANnr.     4001883707297   Varegruppe     Pulte   Se stort billede     Tryk her

• All connections for 2.6 mm / 3/32" diameter plug connections.
• Functions are the same as the 72720 control box.

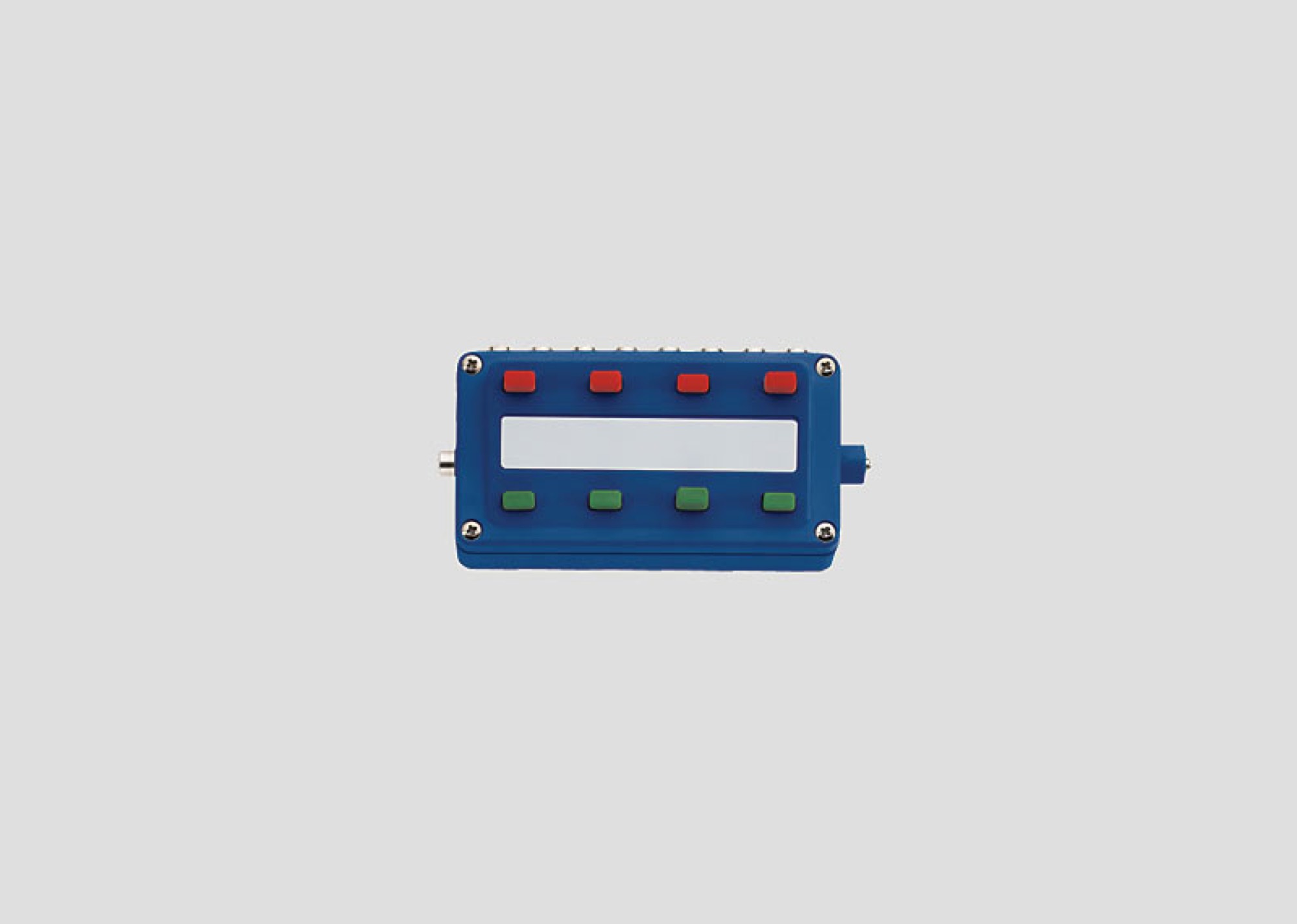

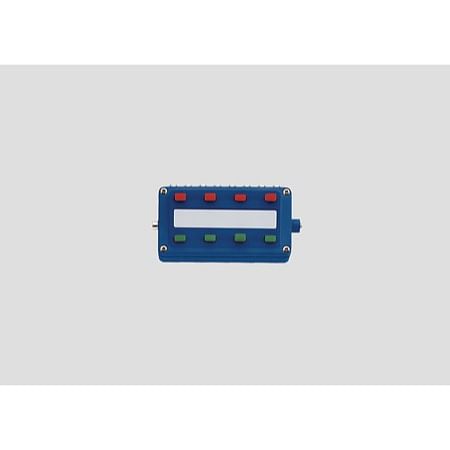

This control box is for operating 4 double solenoid accessories such as turnouts and signals or up to 8 uncoupler tracks. The position of the buttons shows the setting for accessories connected to the sockets for those buttons. The control box comes with 8 sockets on the back and a plug on one end and a socket on the other end. All of the connections are for the old 2.6 mm / 3/32" plugs and sockets. Dimensions 80 x 40 mm / 3-1/8" x 1-9/16". Package contents 5 pieces.





Schematic of 70729/72720 (Button 3 pressed)
