Rollenprüfstand mit Anzeigegerät. - Rollenprüfstand

Producent     Märklin   Varenr.     78103   EANnr.     4001883781037   Varegruppe     Prøvestande   Se stort billede     Tryk her

Skala     1:87 - H0

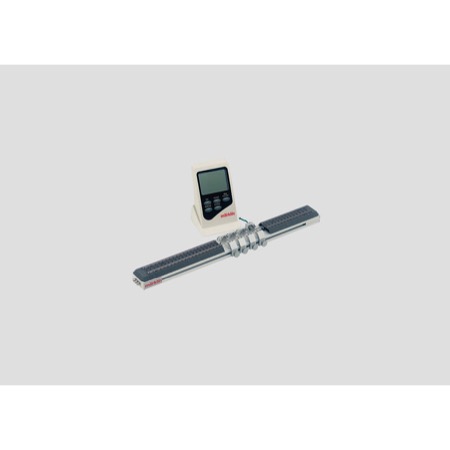

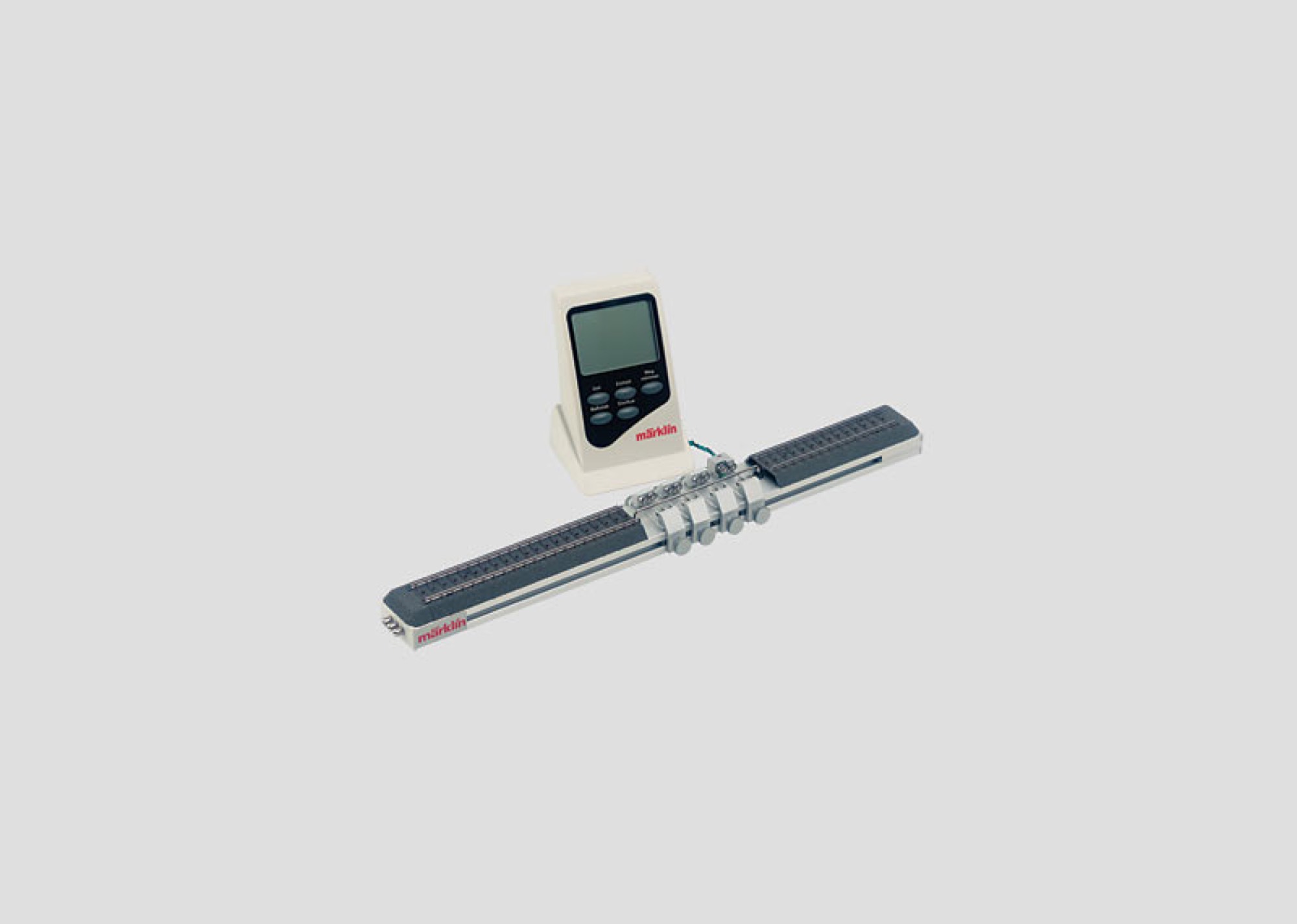

Set consisting of a roller test stand and an information display unit. This is a test stand for servicing and presenting locomotives with up to 8 coupled driving wheels. It is ideal for models such as the class 03, class 41, and the Mikado. The superstructure is made of anodized aluminum shapes. Three adjustable pairs of roller brackets with precision ball bearings are included. C Track sections are included for positioning non-powered axles. Locomotive power connections for conventional transformers, Delta, the Digital Systems are present. The center conductor is removable in the roller area. The running rails can be separately connected so that the unit is also suitable for two-rail locomotives. Up to two 78110 pairs of roller bracket can be added to this roller test stand. Dimensions 400 x 42 x 30 mm / 15-3/14" x 1-5/8" x 1-3/16". A measurement device is included for installation on the roller test stand. It enables you to measure the duration of operation for the locomotive / powered rail car, the route length, and the speed. A special pair of roller brackets is included with measurement generators and connections to the information display unit with an LCD display. The scale of the model, the units to be measured, and the measurement areas can be selected. 3 type AA / LR6 batteries (not included) are necessary to operate this unit.
